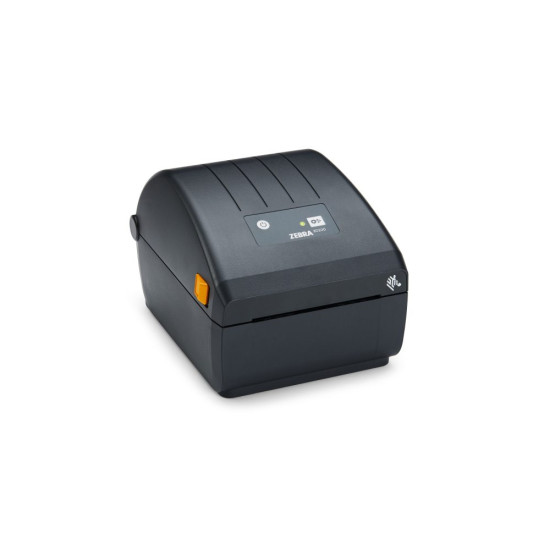

Zebra ZD220 Series Thermal Transfer Desktop Label Printer – 203 dpi / USB / 4 ips / 4.09-inch Print Width – [ZD220t]

The Zebra ZD220t is a compact thermal transfer desktop label printer from the ZD200 Series, designed for barcode labels, shipping labels, product tags, receipts and other media applications. It prints at 203 dpi with speeds up to 4 inches per second and connects through USB 2.0.

The ZD220t configuration uses 74 m thermal-transfer ribbons and supports media up to 4.4 inches wide, making it suitable for retail, logistics, shipping and light-duty identification workflows.

Key Specifications

• Printer type: 4-inch desktop thermal transfer label printer
• Manufacturer: Zebra Technologies
• Series: Zebra ZD200 Series
• Model: ZD220t
• Print resolution: 203 dpi / 8 dots per mm
• Maximum print speed: 4 ips / 102 mm per second
• Maximum print width: 4.09 inches / 104 mm
• Media width: 1.00 to 4.40 inches / 25.4 to 112 mm
• Maximum label length: 39 inches / 991 mm
• Connectivity: USB 2.0
• Programming languages: ZPL II and EPL2
• Memory: 128 MB Flash and 128 MB SDRAM
• Ribbon capacity: 74 m standard ribbon, with ribbon widths from 1.33 to 4.3 inches / 33.8 to 109.2 mm
• Media sensing: Fixed off-center gap sensor and movable black-mark sensor
• Thermal-transfer dimensions: 267 x 197 x 191 mm
• Thermal-transfer weight: Approximately 1.7 kg
• Power input: Auto-detectable 100–240 VAC, 50–60 Hz

Highlights

• Thermal-transfer printing supports durable labels using ribbon media.
• OpenACCESS clamshell design helps simplify media loading.
• Supports roll-fed and fan-fold media, die-cut or continuous labels, tag stock, receipt paper and compatible wristband stock.
• Supports common 1D and 2D barcode formats, including Code 128, EAN, UPC, DataMatrix, PDF417, QR Code and MaxiCode.
• Single LED status indicator and feed/pause button provide simple printer operation.
• Dual-wall frame construction is designed for regular desktop business use.
• Link-OS Basic, ZPL II, EPL2 and Unicode support enable integration with a range of label-printing workflows.

For an exact order configuration, verify the complete Zebra part number because ZD220t variants may differ by regional power cord, peeler option and other configuration details.
