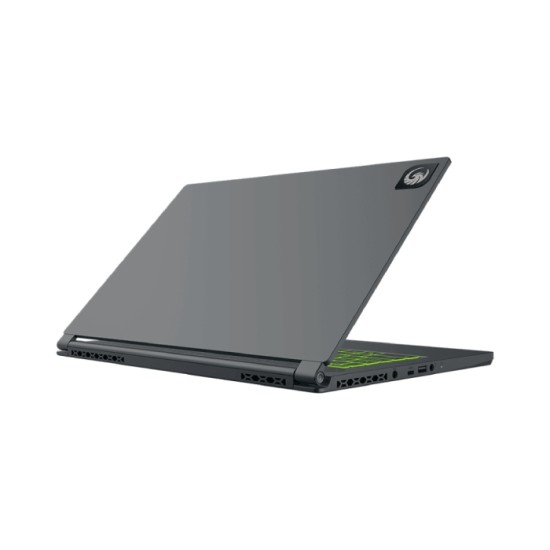

MSI Katana 15 HX Gaming Laptop – Intel Core i7-14650HX / 15.6-inch QHD 165Hz / 512GB SSD / 16GB RAM / NVIDIA GeForce RTX 5060 8GB / FreeDOS / Black – [9S7-1587C1-020]

The MSI Katana 15 HX B14WFK-020XPL is a gaming laptop built around an Intel Core i7-14650HX processor, 16GB of DDR5 memory and NVIDIA GeForce RTX 5060 Laptop graphics with 8GB GDDR7 video memory. It features a 15.6-inch QHD IPS-Level display with a 165Hz refresh rate and comes with FreeDOS instead of a preinstalled Windows license.

The laptop includes a 512GB PCIe Gen4 NVMe SSD, a four-zone RGB gaming keyboard with Copilot key, Wi-Fi 6E connectivity and a black chassis.

Key Specifications

• Brand: MSI
• Series: Katana 15 HX B14W
• Model: B14WFK-020XPL
• MPN: 9S7-1587C1-020
• Processor: Intel Core i7-14650HX, 16 cores, up to 5.2GHz
• Display: 15.6-inch QHD IPS-Level, 2560 x 1440 resolution
• Display refresh rate: 165Hz
• Display color coverage: 100% DCI-P3 typical
• Memory: 16GB DDR5, configured as 2 x 8GB
• Storage: 512GB NVMe PCIe Gen4 SSD
• Graphics: NVIDIA GeForce RTX 5060 Laptop GPU
• Video memory: 8GB GDDR7
• Operating system: FreeDOS
• Keyboard: Four-zone RGB gaming keyboard with Copilot key
• Webcam: HD 720p at 30fps
• Wireless connectivity: Intel Wi-Fi 6E AX211 and Bluetooth 5.4
• Ports: 3 x USB-A 3.2 Gen 2, 1 x USB-C 3.2 Gen 2 with DisplayPort and Power Delivery, HDMI 2.1, Gigabit Ethernet and 3.5mm audio combo jack
• Battery: Four-cell, 75Wh
• Power adapter: 240W
• Color: Black
• Weight: 2.4kg
• Dimensions: 359 x 262 x 25.5mm

Highlights

• QHD 2560 x 1440 resolution with a 165Hz refresh rate for high-refresh gaming and detailed visuals.
• Intel Core i7-14650HX processor with 16 cores and up to 5.2GHz turbo frequency.
• NVIDIA GeForce RTX 5060 Laptop GPU with 8GB GDDR7 video memory.
• Upgradeable DDR5 memory platform with two memory slots and support for up to 96GB according to MSI specifications.
• Four-zone RGB keyboard with integrated Copilot key and numeric keypad.
• USB-C connectivity includes DisplayPort output and Power Delivery 3.0 support.
• HDMI 2.1 supports up to 8K at 60Hz or 4K at 120Hz.
• FreeDOS allows the user to install a preferred operating system.

The MSI Katana 15 HX B14WFK-020XPL combines a high-refresh QHD display, HX-series Intel processor and RTX 5060 graphics in a black 15.6-inch gaming laptop.
