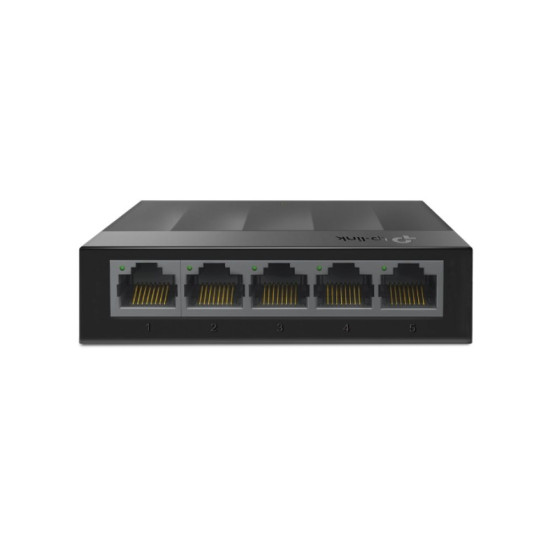

TP-Link LiteWave 5-Port Gigabit Unmanaged Desktop Switch – 5× 10/100/1000Mbps RJ45 / Fanless / Plug and Play – [LS1005G]

The TP-Link LiteWave LS1005G is a 5-port unmanaged Gigabit Ethernet switch for expanding wired network connections at home, in small offices, or in other basic network environments. Its five 10/100/1000Mbps RJ45 ports support Auto-Negotiation and Auto-MDI/MDIX, allowing compatible devices to connect without manual configuration.

The fanless plastic design supports quiet operation, while Green Ethernet technology helps adjust power use according to network conditions.

Key Specifications

• Brand: TP-Link
• Series: LiteWave
• Model/MPN: LS1005G
• Product type: 5-port unmanaged Gigabit desktop switch
• Ports: 5× 10/100/1000Mbps RJ45 ports
• Port features: Auto-Negotiation and Auto-MDI/MDIX
• Standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x
• Switching capacity: 10Gbps
• Packet forwarding rate: 7.4Mpps
• MAC address table: 2K entries
• Forwarding method: Store and forward
• Packet buffer memory: 1.5Mb
• Jumbo frame: 16KB
• Power supply: External adapter, 5V/0.6A
• Maximum power consumption: 3.83W
• Dimensions: 90 × 72 × 23mm
• Housing: Plastic
• Cooling: Fanless
• Certifications: CE, FCC and RoHS

Highlights

• Plug-and-play operation with no configuration required
• Five Gigabit ports for connecting computers, printers, IPTV devices, cameras and other Ethernet equipment
• Auto-MDI/MDIX eliminates the need to use crossover cables
• Green Ethernet technology helps reduce power consumption
• IEEE 802.3x flow control supports reliable data transfer
• Fanless construction enables quiet operation
• Desktop placement and wall-mounting support

The TP-Link LS1005G provides a straightforward way to add Gigabit Ethernet connections to a wired network in Oman.
