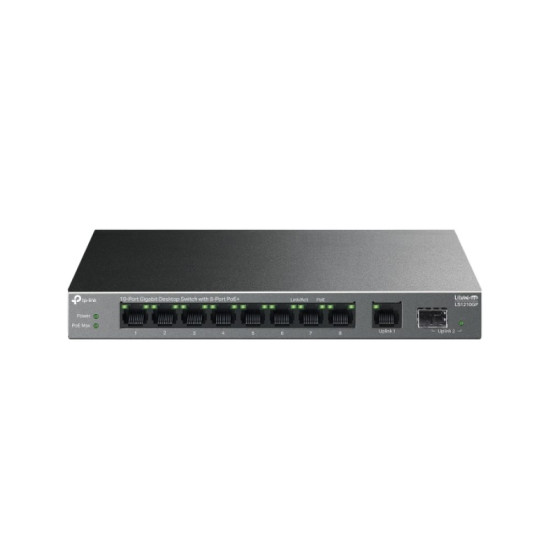

TP-Link LiteWave 10-Port Gigabit PoE+ Switch – 8× PoE+ / 1× Gigabit SFP / 61W PoE Budget / Fanless – [LS1210GP]

The TP-Link LS1210GP is a LiteWave 10-port Gigabit desktop switch with eight 802.3af/at PoE+ ports and one Gigabit SFP port. It provides up to 61W of total PoE power, allowing compatible IP cameras, wireless access points and IP phones to receive data and power through a single Ethernet cable.

Designed for simple plug-and-play networking, the LS1210GP features a fanless metal housing, desktop or wall-mount installation, and dedicated controls for Extend Mode, Isolation Mode and PoE Auto Recovery.

Key Specifications

• Model: LS1210GP
• Product type: 10-port Gigabit desktop switch with 8-port PoE+
• RJ45 interfaces: 9× 10/100/1000 Mbps ports
• PoE ports: Ports 1–8
• PoE standard: IEEE 802.3af/at
• Maximum PoE output: Up to 30W per PoE port
• Total PoE power budget: 61W
• Uplink interface: 1× Gigabit SFP port
• Switching capacity: 20Gbps
• Packet forwarding rate: 14.88Mpps
• MAC address table: 4K entries
• Jumbo frame: 16KB
• Cooling: Fanless
• Power supply: External adapter, 53.5V DC / 1.31A output
• Dimensions: 209 × 126 × 26mm
• Installation: Desktop or wall mounting
• Operating temperature: 0°C to 40°C

Highlights

• Eight Gigabit PoE+ ports support compatible powered devices through a single network cable.
• Extend Mode supports PoE power and data transmission over distances of up to 250 metres on Ports 1–4; ports operating in Extend Mode are limited to 10Mbps.
• Isolation Mode helps separate client traffic on PoE ports for improved network separation.
• PoE Auto Recovery automatically reboots an unresponsive connected PoE device.
• Fanless operation helps provide quiet networking for homes, offices and surveillance installations.
• Plug-and-play design requires no configuration for basic network deployment.
• The Gigabit SFP port provides a fibre uplink option and operates at 1Gbps.

The TP-Link LS1210GP is suitable for Gigabit network expansion and PoE-powered surveillance, access-point and VoIP installations.
