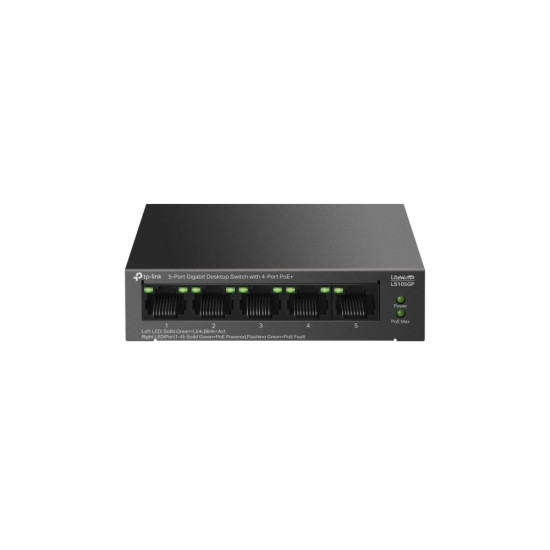

TP-Link LiteWave 5-Port Gigabit PoE+ Desktop Switch – 4-Port 802.3af/at / 65W PoE Budget / Fanless – [LS105GP]

The TP-Link LS105GP is a compact 5-port Gigabit desktop switch designed to connect and power compatible network devices such as IP cameras, wireless access points and IP phones. It provides four 802.3af/at PoE+ ports with a total 65W PoE budget, while its fanless metal design supports quiet desktop or wall-mounted installation.

Key Specifications

• Model: LS105GP
• Ports: 5 × 10/100/1000Mbps RJ45 ports
• PoE ports: Ports 1–4 with IEEE 802.3af/at PoE+ support
• PoE output: Up to 30W per PoE port
• Total PoE budget: 65W
• Switching capacity: 10Gbps
• Packet forwarding rate: 7.44Mpps
• MAC address table: 2K entries
• Jumbo frame: 16KB
• Dimensions: 99.8 × 98 × 25mm
• Cooling: Fanless
• Installation: Desktop or wall mounting
• Power supply: External adapter, 53.5V DC / 1.31A
• Certifications: FCC, CE and RoHS

Highlights

• Gigabit connectivity across all five RJ45 ports for high-speed wired networking.
• Supplies both data and power to compatible PoE devices through a single Ethernet cable.
• Extend Mode supports PoE power and data transmission up to 250m on Ports 1–2; port speed is reduced to 10Mbps in this mode.
• PoE Auto Recovery can automatically restart dropped or unresponsive PoE-powered devices.
• Plug-and-play operation requires no configuration for basic deployment.
• Fanless operation helps provide quiet performance in homes, offices and surveillance installations.
• Supports IEEE 802.3x flow control, 802.1p/DSCP QoS, IGMP Snooping and MAC address auto-learning and auto-aging.

The TP-Link LS105GP is suitable for small network installations requiring Gigabit Ethernet connectivity and PoE+ device power over a single switch.
