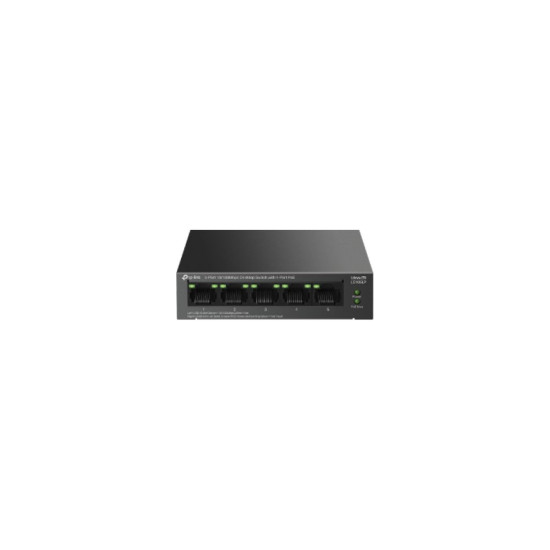

TP-Link LiteWave 5-Port 10/100Mbps Desktop PoE Switch – 4 PoE Ports / 41W PoE Budget / Fanless / 1Gbps Switching Capacity – [LS105LP]

The TP-Link LS105LP is a compact LiteWave desktop network switch with five 10/100Mbps RJ45 ports, including four PoE ports for connecting compatible devices such as IP cameras, access points and IP phones. It provides a 41W total PoE budget, plug-and-play installation, and a fanless design for quiet operation in home, office and surveillance network setups.

The switch supports desktop or wall-mount installation and includes Extend Mode for longer PoE transmission distances, subject to cable quality and connected-device power requirements.

Key Specifications

• Manufacturer: TP-Link
• Model/MPN: LS105LP
• Product family: LiteWave PoE Switches
• Switch type: Unmanaged desktop PoE switch
• Ports: 5 × 10/100Mbps RJ45 ports
• PoE ports: Ports 1–4
• Total PoE budget: 41W
• Switching capacity: 1Gbps
• Packet forwarding rate: 0.744Mpps
• MAC address table: 2K entries
• Jumbo frame: 2KB
• Transmission method: Store-and-forward
• Power supply: External adapter, 53.5V DC / 0.81A output
• Cooling: Fanless
• Dimensions: 100 × 98 × 25mm
• Installation: Desktop or wall mounting

Highlights

• Four PoE ports allow network connectivity and power delivery over a single Ethernet cable for compatible devices.
• Extend Mode supports up to 250m of data and power transmission when suitable cabling and connected devices are used; port speed is reduced to 10Mbps in this mode.
• PoE Auto Recovery can automatically reboot dropped or unresponsive PoE-powered devices.
• Auto-negotiation and Auto MDI/MDIX simplify network connection and installation.
• Fanless operation provides quiet performance for noise-sensitive environments.
• Plug-and-play design requires no configuration for basic network deployment.

The TP-Link LS105LP is suitable for small wired networks, IP surveillance installations and other compact PoE applications.
